CorrugatorsC4

Reliable, versatile and productive

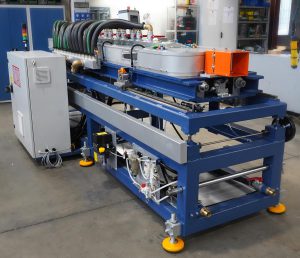

The Corrugator C4 has been designed for the production of medium and large diameter corrugated pipes for the electrical, healthcare, and household sectors. This excellent machine is capable of working with tubes ranging from Ø25 mm internal diameter to Ø75 mm external diameter.

Description

Its extreme versatility is derived from the presence of special extrusion heads that allow the production of tubes with central laminates, double walls, and various color stripes.
Furthermore, it is compatible with molds for blow molding and single or double channel vacuum, offering endless production possibilities.

The Corrugator C4 provides the flexibility to vary the number of molds through simple operations, enabling precise customization of production lines. The machine can produce double-walled pipes with internal laminates, and color stripes pipes, allowing a wide range of applications in the industry.

One of its strengths is its liquid cooling system, which can be easily connected to an industrial refrigerator or cooling plant. This system ensures rapid heat dissipation, enabling high-speed production.

The Corrugator C4 maintains compact dimensions, guaranteeing unparalleled robustness and stability during production. User-friendliness is another fundamental feature. Energy consumption and maintenance costs are minimized, allowing for resource optimization.

Technical Information

  • Mold blocks made of steel

  • Automatic lubrication system

  • Siemens PLC unit

  • Touchscreen panel

  • Forward and backward movement of mold blocks

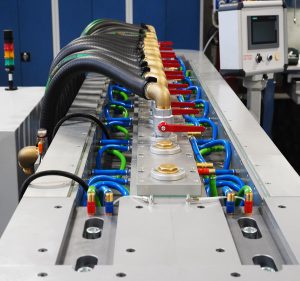

  • Water cooling system: front, rear, left, and right central channels

  • Quick and easy mold block change

  • Air-driven push-off cylinder

  • Interface for synchronization with the extruder
  • Compatibility with Industry 4.0

The machine is fully customizable to meet the specific needs of each customer, ensuring maximum satisfaction.

C4 | Technical Details

Min

Max

Ø25mm ID

Ø75mm OD
